Ubiquiti WiFi Access point removal "key"

The solution to this problem, like most problems, is simple as long as you know the answer.

Ubiquiti WiFi access points such as this UAP AC Lite are designed to be affixed to ceilings.

The actual access point is attached to a base that is firstly affixed to the ceiling.

The access point is then fitted to the base and rotated so that the tang on the base (arrowed) goes over the rotational stop and locks in to the slot of the access point.


To remove the access point the tang of the base needs to be raised so the access point can be rotated and removed. This is easy when the unit is not fitted to the ceiling as you can lift it with your finger.

When it is fitted to the ceiling though you have to insert an object through the small access hole (arrowed) and lift the tang

No keys or tools are supplied with the access point for removal. Screwdrivers don't really fit into the access hole as they are too big and there is not much room available when the access point is fitted to the ceiling.

The ideal solution is a steel wire paper clip. The bigger the better as long as the wire diameter of the paper clip goes through the access point hole, This 50mm long paper clip seems the ideal size.

With a pair of needle nose pliers, straighten out the outside bend as shown.

Then bend the now straight portion back around to 90°

Now half way between the 90° bend and the end of the wire, bend the wire 45° to the left and then 5mm closer to the end of the wire put another 45° bend in this time to the right.

The bent paper clip can now be inserted into the access hole of the access point.

Now rotate the paper clip up the the left, the 45° bends in the wire lift the tang clear of the rotational stop.

The access point can now be rotated anti clockwise (looking from underneath) and removed from the base unit.

A simple solution to a tricky problem that can be made with an item found in any office or home.

Sunday 4 September 2016

Installing PFSense on Soekris NET6501 with mSATA drive

A Soekris NET6501 is a small single board PC that can be used in a variety of roles. In this case it is being used for running PFSense an open source firewall program. There are several different NET6501 boards that vary on CPU speed memory and Ethernet ports. This board is a NET6501-50 in a 19" rack mount case but the instructions should work on other variants.

First step was to install the mSATA drive onto the 6501. The various ports on the board seem to be sharing buses so you may have to experiment if you are using USB and other ports but this location for the mSATA worked fine for me

Next we need to download PFSense to load on to the 6501, this is where it starts getting tricky.

PFSense is built on Free BSD. Since PFSense version 2.2 it has been built using version 10.x of Free BSD. There seems to be an issue with Free BSD version 10.x that stops the 6501 board from booting from the mSATA drive after PF Sense has been installed. The latest version of PFSense is 2.3.2 and still has the problem of booting from mSATA.

I got around this issue by loading an older version of PFSense and then upgrading from within that version of PFSense.

The version of PFSense I used was 2.1.3 this does not appear as an option to download from the main PFSense site so you may have to dig around on the internet to find it. I found it at this mirror site.

The version that I used was
This is used it install via a USB memory stick and has a serial console

Download the file and write it to a memory stick and make sure that the memory stick is bootable, I used a Windows program called Rufus or use your other favourite memory stick writing program.

Once you have PFSense 2.1.3 on a memory stick and you have your mSATA installed in your 6501 you are nearly ready to install

If you are connecting to the 6501 via the serial port you will need a program such as Putty. Putty initially needs to be set to 19200 8 data bits 1 stop bit and no parity to talk to the 6501 but you will also need 9600 and 115200. This is because PFSense 2.1.3 uses 9600 but when you update to the latest version that will use 115200.

When you boot the 6501 you should see a screen as below when it has booted



Type Show



You can see the console speed is set to 19200 and the bootdrive is set to 80 81 82 the mSATA drive will be 80 and the USB memory stick will be 81. You can change these settings if you want to but you will have to take the console lock off first by typing
ConLock=disabled

If you are happy with the settings insert the memory stick into the USB port next to the console port and make a short press on the reset button

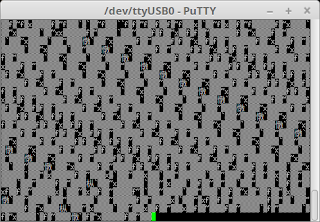

The 6501 will reboot and seem to have rubbish on the screen


Restart Putty at 9600 and connect to the 6501 you should then see that PFSense is loading from the memory stick


Pressing I will invoke the installer.
Install PFSense by following the on screen menus
You should have the 6501 connected to your network via an Ethernet cable
The Quick and Easy option worked for me
When the progress bar reaches 100% you should see this screen

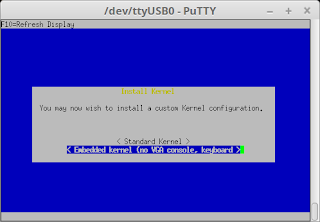

Select "Embedded Kernel" this will allow the serial port to still work after reboot the standard kernel will not. Some more data will be written to the mSATA before you see this screen


Select "Reboot" Hopefully the 6501 will reboot into the installed PFSense on the mSATA and not the memstick installer program. If it does boot the installer remove the memory stick and reboot the 6501. If it still does not boot check the bootdrive setting of the 6501 it should be 80 first.

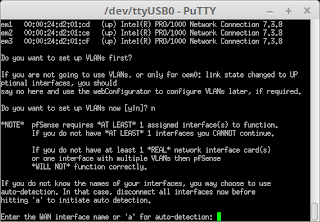

Hopefully PFSense will run correctly and you should see this screen, Select "n" for setting up the VLANs





Select "a" for auto detection of the WAN interface


Connect the network to the 6501 ETH 0 port, if already connected remove and reinsert the cable. Then press "ENTER"




The connection should have been detected, if not repeat auto detection and and remove and reinsert the cable until it is.

You will then be asked about setting up the LAN interface, we can ignore that at this point, Just hit enter



select "y" to assign the WAN interface


Eventually you should see this screen


Option 13 should allow you to update PFSense from the console but I had no luck doing it that way. However I did do it this way.

Using you favourite browser connect to the ip address shown for the WAN, in this case 192.168.101.112


You will probably get a message saying your connection is not private, click advanced and then proceed


Login to PFSense. The user name is admin and the password is pfsense



Click the logo at the top of the screen to stop the wizard



On the Dashboard click on "Click Here" next to Update Available

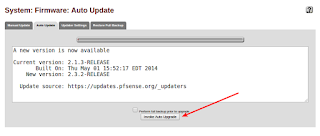

Click the "Invoke Auto Upgrade" button


The new version will down load, install and reboot the 6501





PFSense will eventually reboot, it may take 5 mins or more. If you now want to contect to PFSEnse with the serial console then you will have to use Putty set at 115200.
As you can see PFSense is now at version 2.3.2

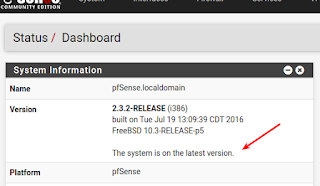

Logging back in with you browser also shows PFSense at the latest build


You now need to set up PFSense to your requirements.
